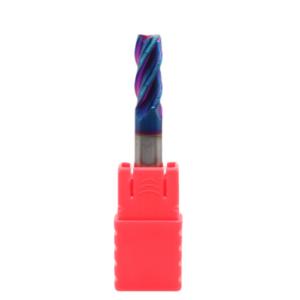

20mm Dia 10*25*10*75-4F Flat End Mill TiAISiNX Square End Mill For Steel & Cast Iron
Product Description:
This 4-flute square end mill is engineered for high-precision milling of steel and cast iron, offering enhanced durability and heat resistance. With its TiAlSiNX coating, this tool ensures superior wear resistance and extended tool life, making it an excellent choice for demanding machining applications.
Specifications:
- Flutes: 4
- Cutting Diameter: 10mm
- Cutting Length: 25mm
- Shank Diameter: 10mm
- Overall Length: 75mm
- Material: Solid Carbide
- Coating: TiAISiNX
- Application: Suitable for milling steel, cast iron, and hardened materials
Product Specifications
| HRC65 Carbide 4 Flutes Flat End Mill |
| Standard Length |
|
Cut Dia
(mm) | Cut Length
(mm) | Shank Dia
(mm) | Overall Length
(mm) | Flutes | Helix
Angle |
| D | Lc | d | L |
| 3 | 8 | 3 | 50 | 4 | 35° |
| 1 | 3 | 4 | 50 | 4 | 35° |
| 1.5 | 4 | 4 | 50 | 4 | 35° |
| 2 | 6 | 4 | 50 | 4 | 35° |
| 2.5 | 7 | 4 | 50 | 4 | 35° |
| 3 | 8 | 4 | 50 | 4 | 35° |
| 4 | 10 | 4 | 50 | 4 | 35° |
| 5 | 13 | 5 | 50 | 4 | 35° |
| 5 | 13 | 6 | 50 | 4 | 35° |
| 6 | 15 | 6 | 50 | 4 | 35° |
| 7 | 18 | 8 | 60 | 4 | 35° |
| 8 | 20 | 8 | 60 | 4 | 35° |
| 10 | 25 | 10 | 75 | 4 | 35° |
| 12 | 30 | 12 | 75 | 4 | 35° |
| 14 | 35 | 14 | 80 | 4 | 35° |
| 14 | 45 | 14 | 100 | 4 | 35° |
| 16 | 45 | 16 | 100 | 4 | 35° |
| 18 | 45 | 18 | 100 | 4 | 35° |
| 20 | 45 | 20 | 100 | 4 | 35° |
| Extended Length |
Cut Dia
(mm) | Cut Length
(mm) | Shank Dia
(mm) | Overall Length
(mm) | Flutes | Helix
Angle |
| D | Lc | d | L |
| 4 | 16 | 4 | 75 | 4 | 35° |
| 4 | 20 | 4 | 100 | 4 | 35° |
| 5 | 20 | 5 | 75 | 4 | 35° |
| 5 | 25 | 5 | 100 | 4 | 35° |
| 6 | 20 | 6 | 75 | 4 | 35° |
| 6 | 30 | 6 | 100 | 4 | 35° |
| 6 | 40 | 6 | 150 | 4 | 35° |
| 8 | 25 | 8 | 75 | 4 | 35° |
| 8 | 35 | 8 | 100 | 4 | 35° |
| 8 | 50 | 8 | 150 | 4 | 35° |
| 10 | 40 | 10 | 100 | 4 | 35° |
| 10 | 50 | 10 | 150 | 4 | 35° |
| 12 | 45 | 12 | 100 | 4 | 35° |
| 12 | 55 | 12 | 150 | 4 | 35° |
| 14 | 60 | 14 | 150 | 4 | 35° |
| 16 | 60 | 16 | 150 | 4 | 35° |
| 18 | 60 | 18 | 150 | 4 | 35° |
| 20 | 70 | 20 | 150 | 4 | 35° |
Key Features:
✅ High-Performance Cutting – 4-flute design ensures smooth and efficient material removal.
✅ TiAlSiNX Coating – Provides exceptional hardness, wear resistance, and heat stability.
✅ Square End Design – Perfect for slotting, profiling, and contouring.
✅ Optimized Geometry – Designed for stability and accuracy in high-speed CNC machining.
