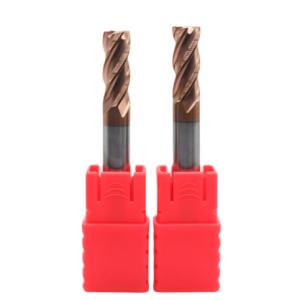

6mm Dia 6*25*6*75 TiAISiN Coated 4 Flat Flutes Carbide Square End Mill For Carbon Steel Alloy Steel Cast Iron
Product Description:
The 6mm 4-Flute Square End Mill is built for precision machin.ing of tough metals, including carbon steel, alloy steel, and cast iron. Manufactured from high-quality carbide and finished with a TiAlSiN (Titanium Aluminum Silicon Nitride) coating, this end mill provides exceptional wear resistance, heat tolerance, and tool longevity, even under demanding machining conditions.
Specifications:
- Cutting Diameter: 6mm
- Flute Length: 25mm
- Shank Diameter: 6mm
- Overall Length: 75mm
- Flutes: 4
- Geometry: Square End (Flat End)
Features:
- Premium micro-grain carbide for high rigidity and excellent tool life
- TiAlSiN coating for high thermal stability and superior wear resistance
- 4-flute design provides excellent chip control and smooth surface finishes
- Square end geometry ideal for slotting, profiling, and face milling
- Suitable for both roughing and finishing cuts
Applications:
- Carbon Steel
- Alloy Steel
- Cast Iron
Widely used in mold and die industries, aerospace parts production, and automotive machining tasks.
2/4 Flutes Flat End Mill Specifications
(For Carbon Steel, Alloy Steel, Cast Iron) |
| Sizes | Cut Diameter
D | Cut Length
Lc | Shank Diameter
d | Overall Length
L | Flutes No. |
| 3*8*3*50 | 3 | 8 | 3 | 50 | 2 / 4 |
| 3*12*3*75 | 3 | 12 | 3 | 75 | 2 / 4 |
| 3*15*3*100 | 3 | 15 | 3 | 100 | 2 / 4 |
| 1*3*4*50 | 1 | 3 | 4 | 50 | 2 / 4 |
| 1*3*4*75 | 1 | 3 | 4 | 75 | 4 |
| 1.5*4*4*50 | 1.5 | 4 | 4 | 50 | 2 / 4 |
| 1.5*4*4*75 | 1.5 | 4 | 4 | 75 | 4 |
| 2*5*4*50 | 2 | 5 | 4 | 50 | 2 / 4 |
| 2*5*4*75 | 2 | 5 | 4 | 75 | 4 |
| 2.5*7*4*50 | 2.5 | 7 | 4 | 50 | 2 / 4 |
| 2.5*7*4*75 | 2.5 | 7 | 4 | 75 | 4 |
| 3*8*4*50 | 3 | 8 | 4 | 50 | 2 / 4 |
| 3*8*4*75 | 3 | 8 | 4 | 75 | 4 |
| 3.5*10*4*50 | 3.5 | 10 | 4 | 50 | 2 / 4 |
| 4*10*4*50 | 4 | 10 | 4 | 50 | 2 / 4 |
| 4*16*4*75 | 4 | 16 | 4 | 75 | 2 / 4 |
| 4*20*4*100 | 4 | 20 | 4 | 100 | 2 / 4 |
| 5*13*5*50 | 5 | 13 | 5 | 50 | 2 / 4 |
| 5*20*5*75 | 5 | 20 | 5 | 75 | 2 / 4 |
| 5*25*5*100 | 5 | 25 | 5 | 100 | 2 / 4 |
| 1*3*6*50 | 1 | 3 | 6 | 50 | 2 / 4 |
| 1.5*4*6*50 | 1.5 | 4 | 6 | 50 | 2 / 4 |
| 2*5*6*50 | 2 | 5 | 6 | 50 | 2 / 4 |
| 2.5*7*6*50 | 2.5 | 7 | 6 | 50 | 2 / 4 |
| 3*8*6*50 | 3 | 8 | 6 | 50 | 2 / 4 |
| 3.5*10*6*50 | 3.5 | 10 | 6 | 50 | 2 / 4 |
| 4*10*6*50 | 4 | 10 | 6 | 50 | 2 / 4 |
| 4*12*4*50 | 4 | 12 | 4 | 50 | 4 |
| 4.5*12*6*50 | 4.5 | 12 | 6 | 50 | 2 / 4 |
| 5*13*6*50 | 5 | 13 | 6 | 50 | 2 / 4 |
| 5.5*15*6*50 | 5.5 | 15 | 6 | 50 | 2 / 4 |
| 6*15*6*50 | 6 | 15 | 6 | 50 | 2 / 4 |
| 6*18*6*50 | 6 | 18 | 6 | 50 | 4 |
| 6*25*6*75 | 6 | 25 | 6 | 75 | 2 / 4 |
| 6*30*6*100 | 6 | 30 | 6 | 100 | 2 / 4 |
| 6*40*6*150 | 6 | 40 | 6 | 150 | 2 / 4 |
| 7*18*8*60 | 7 | 18 | 8 | 60 | 2 / 4 |
| 8*20*8*60 | 8 | 20 | 8 | 60 | 2 / 4 |
| 8*24*8*60 | 8 | 24 | 8 | 60 | 4 |
| 8*28*8*75 | 8 | 28 | 8 | 75 | 2 / 4 |
| 8*35*8*100 | 8 | 35 | 8 | 100 | 2 / 4 |
| 8*50*8*150 | 8 | 50 | 8 | 150 | 2 / 4 |
| 9*23*10*75 | 9 | 23 | 10 | 75 | 2 / 4 |
| 10*25*10*75 | 10 | 25 | 10 | 75 | 2 / 4 |
| 10*30*10*75 | 10 | 30 | 10 | 75 | 4 |
| 10*40*10*100 | 10 | 40 | 10 | 100 | 2 / 4 |
| 10*50*10*100 | 10 | 50 | 10 | 100 | 4 |
| 10*50*10*150 | 10 | 50 | 10 | 150 | 2 / 4 |
| 11*28*12*75 | 11 | 28 | 12 | 75 | 2 / 4 |
| 12*30*12*75 | 12 | 30 | 12 | 75 | 2 / 4 |
| 12*36*12*75 | 12 | 36 | 12 | 75 | 4 |
| 12*45*12*100 | 12 | 45 | 12 | 100 | 2 / 4 |
| 12*50*10*100 | 12 | 50 | 12 | 100 | 4 |
| 12*60*12*150 | 12 | 60 | 12 | 150 | 2 / 4 |
| 14*35*14*80 | 14 | 35 | 14 | 80 | 2 / 4 |
| 13*45*14*100 | 13 | 45 | 14 | 100 | 2 / 4 |
| 14*45*14*100 | 14 | 45 | 14 | 100 | 2 / 4 |
| 14*60*14*150 | 14 | 60 | 14 | 150 | 2 / 4 |
| 15*45*16*100 | 15 | 45 | 16 | 100 | 2 / 4 |
| 16*45*16*100 | 16 | 45 | 16 | 100 | 2 / 4 |
| 16*60*16*150 | 16 | 60 | 16 | 150 | 2 / 4 |
| 18*45*18*100 | 18 | 45 | 18 | 100 | 2 / 4 |
| 18*70*18*150 | 18 | 70 | 18 | 150 | 2 / 4 |
| 20*45*20*100 | 20 | 45 | 20 | 100 | 2 / 4 |
| 20*70*20*150 | 20 | 70 | 20 | 150 | 2 / 4 |
Packaging and Shipping:
• Packaging:Typically packaged in plastic pipes or boxes to ensure protection during transit.
• Minimum Order Quantity:Varies by supplier,but generally starts from 10 pieces.
• Delivery Time:Usually within 3-5 days for standard sizes after order confirmation.
Notes:
• Before using the carbide end mill,it is recommended to measure the tool deflection and correct it if the accuracy exceeds 0.01mm.
• The tool's performance can be optimized by adjusting cutting parameters such as speed,feed rate,and cutting depth based on the material being machined.
