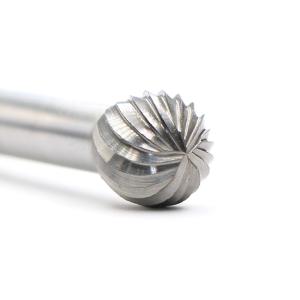

3mm SD Ball Shape Carbide Burrs Single Cut Carbide Rotary Burr On 3mm Shank

  • 1
  • 2

Brand Name : BABOS

Model Number : D032.5C03

Place of Origin : China

MOQ : 20pcs

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 10,0000pcs per month

Delivery Time : 3 days for standard products, 1-2weeks for custom products.

Packaging Details : Plastic Box

Material : Tungsten Carbide

Shape : Ball Shape

Cut Diameter : 3mm

Cut Length : 2.5mm

Shank Diameter : 3mm

Overall Length : 38mm

Flute Type : Single Cut

Suitable For : Machining Surface Profile of Workpiece

Application : Deburring, Shaping, and Finishing

Package Quantity : 1 pcs

Max Rpm : 50,000

Contact Now

3mm SD Ball Shape Carbide Burrs Single Cut Carbide Rotary Burr On 3mm Shank


Ball Shape Carbide Burr On 3mm Shank


Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:3mm

Length of Flute: 2.5mm

Shank Diameter: 3mm

OAL: 38mm

Cut Type:Single Cut




Other Available Sizes Related to Type D Carbide Burrs Both in Metric and Inch Standard:


Metric Standard
Shank Dia. (mm) Cutter Dia. (mm) Length of Cut (mm) Overall Length (mm) Tool No. The Combination of Head and Shank
d2 d1 l2 l1
3 2 1.8 38 D0202 Solid
2.5 2.3 38 D2525 Solid
3 2.5 38 D0325 Solid
4 3 41 D0403 Brazed
5 4 42 D0504 Brazed
6 5 43 D0605 Brazed
6 6 5 50 D0605 Brazed
8 7 52 D0807 Brazed
10 9 54 D1009 Brazed
12 10 55 D1210 Brazed
16 14 59 D1614 Brazed
19 18 63 D1918 Brazed
25 21 66 D2521 Brazed
8 12 10 56 D1210 Brazed
16 14 59 D1614 Brazed
19 18 63 D1918 Brazed
25 21 66 D2521 Brazed
Inch Standard
1/8'' 1/8" 1/8" 1-1/2" SD-42 Solid
3/16" 5/32" 1-1/2" SD-53 Brazed
1/4" 7/32" 1-3/4" SD-51 Brazed
1/4'' 3/16" 1/8" 2'' SD-14 Solid
1/4" 7/32" 2'' SD-1 Solid
5/16" 1/4" 2" SD-2 Brazed
7/16" 3/8" 2-1/7" SD-4 Brazed
1/2" 7/16" 2-1/5" SD-5 Brazed
5/8" 9/16" 2-1/3" SD-6 Brazed
3/4" 11/16" 2-4/9" SD-7 Brazed
1" 15/16" 2-7/8" SD-9 Brazed





Customization:

  1. Please send us the drawings or other important information if you need non-standard carbide burrs.
  2. Please contact us if you need more information about type D burrs or other shapes of burrs.
  3. OEM is avaliable.




Cut Selection Guide:


STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

 WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

 DIAMOND CUT(D)
